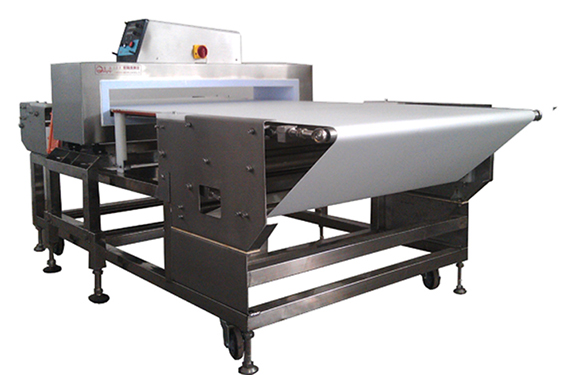

GJ-II Wide Belt Metal Detector

Online contact 4008-200-150

parameter
video
advantage
application

Parameters

SPECIFICATION

Model

4010

4012

4015

4020

5015

5020

5025

5030

Aperture Passing Width(mm)

400

500

Aperture Passing Height(mm)

100

120

150

200

150

200

250

300

Belt Width(mm)

370

470

Sensitivity for Fe(Φmm)

≥0.7

≥0.8

≥1.0

≥1.2

≥1.0

≥1.2

≥1.5

≥2.0

Sensitivity for Non-Fe(Φmm)

≥1.2

≥1.3

≥1.7

≥2.2

≥1.7

≥2.2

≥2.7

≥3.2

Sensitivity for Sus(Φmm)

≥1.3

≥1.5

≥2.0

≥2.5

≥2.0

≥2.5

≥3.0

≥3.5

Control Panel

Knob and Button Control

Construction Material

Stainless Steel 304

Belt Type

Food Grade Belt

Power Supply

AC110～220V±10%, single phase, 50/60 Hz

Working Temperature

-10 ℃ ～40℃

Conveyor Speed

Standard: 28 Meters/Minute
Optional: Adjustable Speed(extra charge)

Alarm Pattern

Standard: Alarm Buzzer and Belt Stop
Optional: Reject System(extra charge)

Note:
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.

2.Other special aperture size can be customized with extra charge

FEATURES

? Wide aperture design, specially used for metal detection on biscuit, cake and chocolate production lines

DIMENSION DRAWING

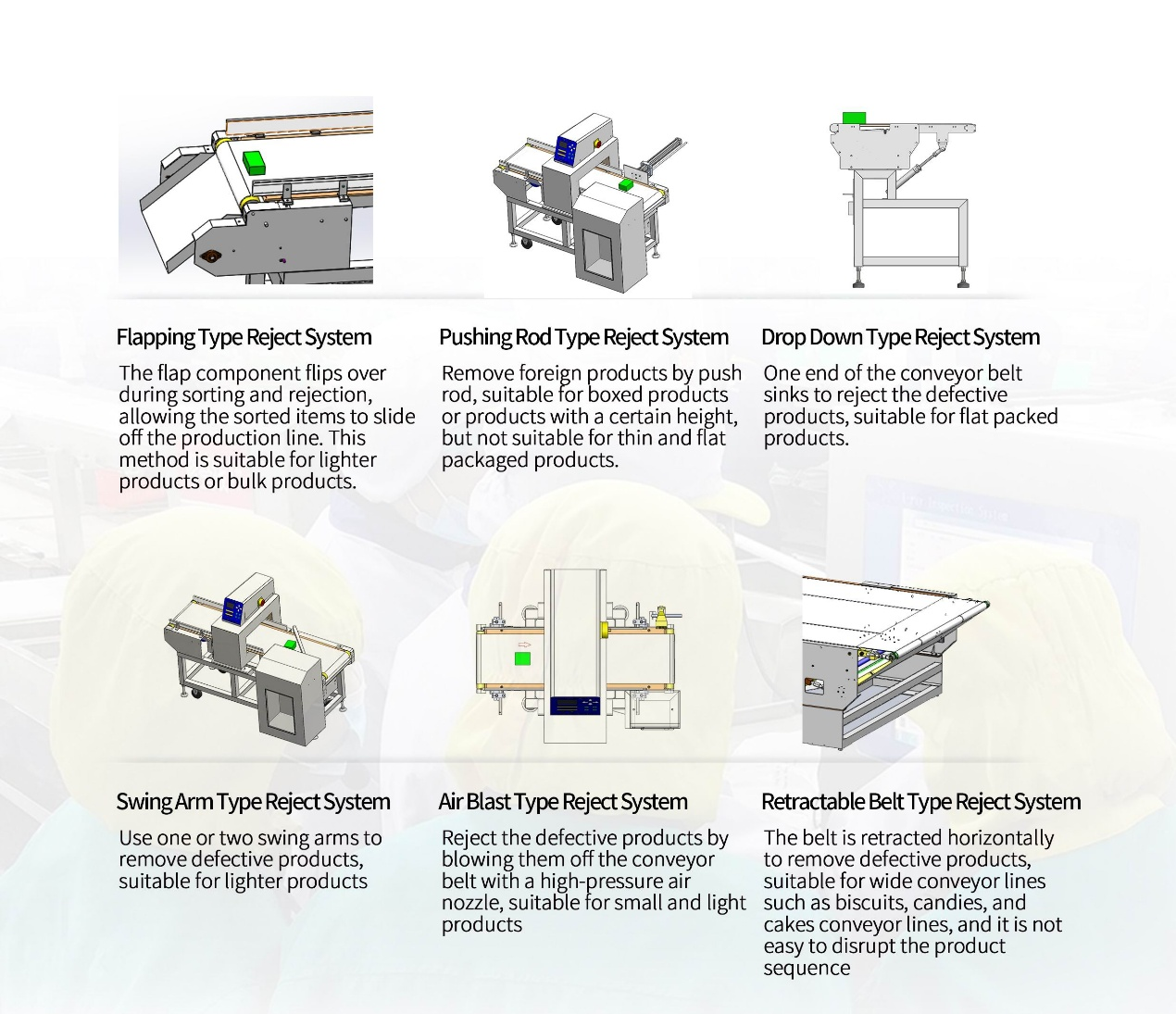

DIFFERENT TYPES OF REJECT SYSTEM

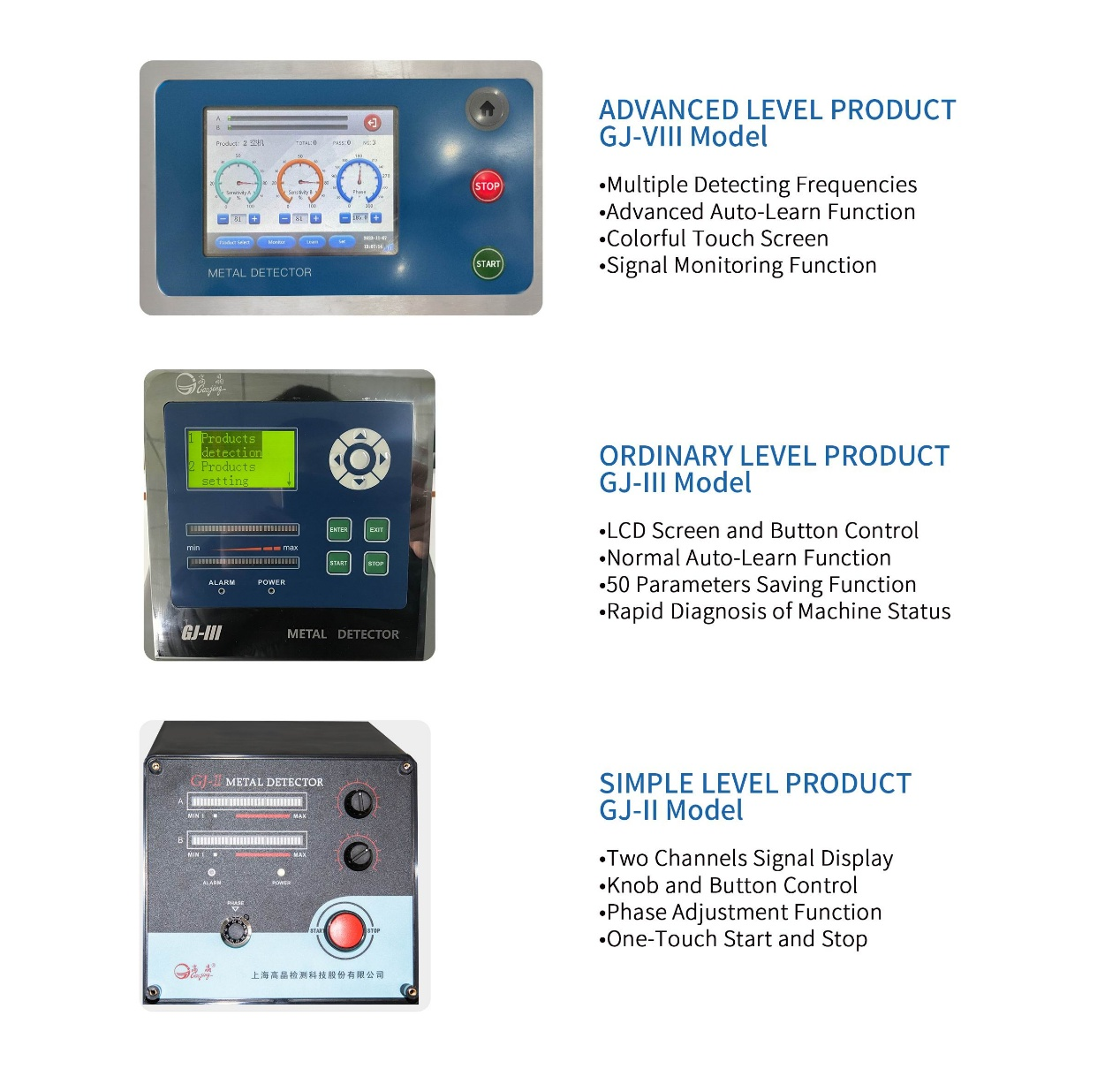

DIFFERENT LEVEL PRODUCTS AVAILABLE

DIVERSIFIED CUSTOMIZATION AVAILABLE

product videos

Product advantages

Wide channel, suitable for detecting metal foreign objects such as biscuits.

Application

烘焙類面包

餅干

面制品

零食類-金探2型

休閑食品果凍-金探2型

Products

GJ-II Wide Belt Metal Detector

Parameters

product videos

Product advantages

Application

Shanghai Gaojing Detection Technology Co., Ltd.

Products

About Us

Contact Us

Model	4010	4012	4015	4020	5015	5020	5025	5030
Aperture Passing Width(mm)	400				500
Aperture Passing Height(mm)	100	120	150	200	150	200	250	300
Belt Width(mm)	370				470
Sensitivity for Fe(Φmm)	≥0.7	≥0.8	≥1.0	≥1.2	≥1.0	≥1.2	≥1.5	≥2.0
Sensitivity for Non-Fe(Φmm)	≥1.2	≥1.3	≥1.7	≥2.2	≥1.7	≥2.2	≥2.7	≥3.2
Sensitivity for Sus(Φmm)	≥1.3	≥1.5	≥2.0	≥2.5	≥2.0	≥2.5	≥3.0	≥3.5
Control Panel	Knob and Button Control
Construction Material	Stainless Steel 304
Belt Type	Food Grade Belt
Power Supply	AC110～220V±10%, single phase, 50/60 Hz
Working Temperature	-10 ℃ ～40℃
Conveyor Speed	Standard: 28 Meters/Minute Optional: Adjustable Speed(extra charge)
Alarm Pattern	Standard: Alarm Buzzer and Belt Stop Optional: Reject System(extra charge)
Note: 1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc. 2.Other special aperture size can be customized with extra charge
